SLP 20RZ

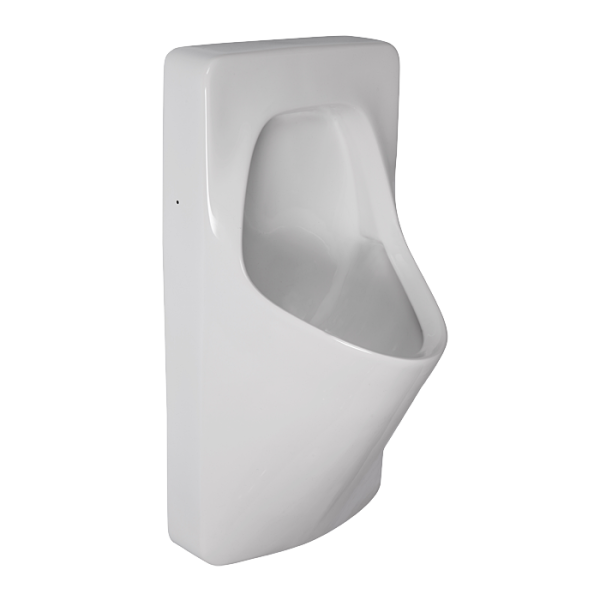

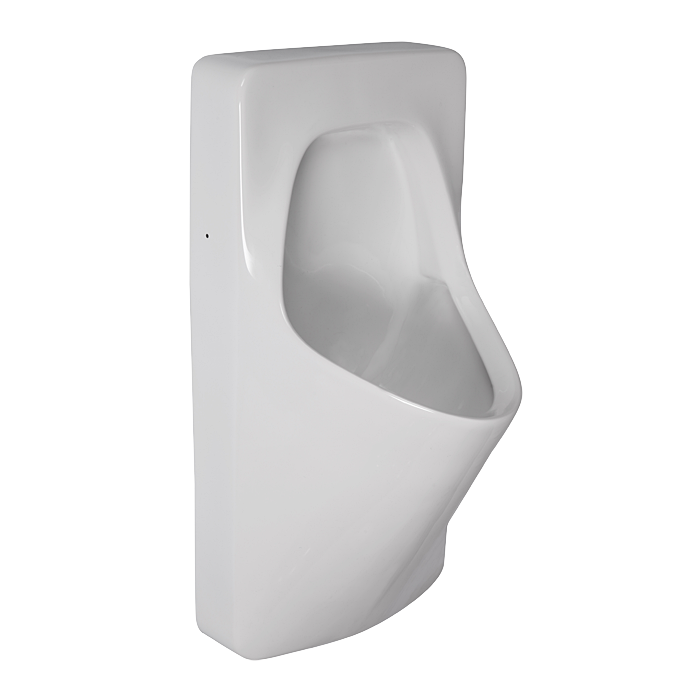

Urinal Antero with a radar flushing unit and integrated power supply, 230 V AC (plug & play)
Vi beklager, men dette produkt er ikke længere i vores sortiment. Prøv venligst at vælge et andet fra vores sortiment
Egenskaber
- includes Bluetooth control (paid Sanela control app available for download)
- easy installation
- whole flushing unit is placed behind the urinal
- system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
- adjustable flushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
- automatic flushing after each 6 hours non-use
- possibility to regulate a water flow by the angle valve
- radar flushing unit recharges a water to the siphon after each flushing
- Ordrenummer: 01205
Jeg er interesseret i mere information:
Leveringsspecifikation
SLP 20RZ - Supply No. 01205 - ceramic urinal with radar flushing unit including Bluetooth module, electromagnetic valve, connecting hoses, angle valve with a filter and check valve, inlet fitting with a rubber sealing, mounting set, power supply
Tekniske oplysninger
| Placering: | bag urinalet |
| Skylleenhed: | urinal inkluderet |
| Strømforsyning: | 230V AC |
| Kontrol: | radar |
| Operating voltage: | 230 V AC/50 Hz |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 18 l/min (inf. data) |
| Water inlet: | male thread G 1/2“ |
| Water outlet: | inlet fitting with a rubber seal |
Downloads
- Monteringsvejledning (804.56 kB)
- Katalogblad (297.24 kB)
- Bygningsforberedelse (418.37 kB)
- 2D-tegning (370.9 kB)
