SLP 99 APP AP28G
Radar flushing unit for urinal APP AP28G
Egenskaber

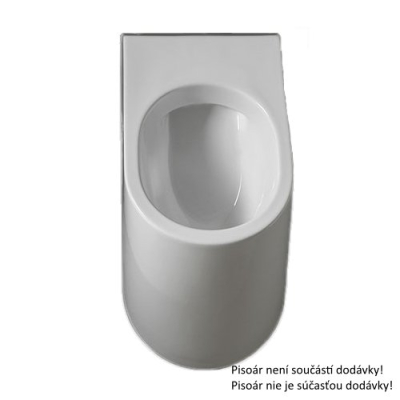

- DESIGNED FOR URINAL APP (Flaminia) AP28G
- includes Bluetooth control (paid Sanela control app available for download)
- THE URINAL DOES NOT HAVE TO BE SENT FOR ASSEMBLY
- SLP 99S - 24 V DC, the product includes a installation box with outlet fitting, it must be embedded in the wall in the space behind the urinal
- SLP 99Z - 230 V AC, including power supply unit
- economy flushing by 1 liter of water
- whole flushing unit is placed behind the urinal
- system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
- adjustable flushing time 0,5 - 15,5 s
- parameter setting and communication with the electronics via the Sanela Control app (Bluetooth) or the SLD 04 remote control (acoustic indication of setting) without dismantling the urinal
- automatic flushing after each 6 hours non-use
- possibility to regulate a water flow by the ball valve
- radar flushing unit recharges a water to the siphon after each flushing
Jeg er interesseret i mere information:
Leveringsspecifikation
SLP 99S - Supply No. 21992 - radar flushing unit including Bluetooth module on the mounting rail, mounting box with brass screw coupling, electromagnetic valve and ball valve, inlet fitting with a rubber sealing
SLP 99Z - Supply No. 21994 - radar flushing unit including Bluetooth module on the mounting rail, mounting box with brass screw coupling, electromagnetic valve and ball valve, inlet fitting with a rubber sealing, power supply
Tekniske oplysninger
| Operating voltage: | SLP 99S - 24 V DC |
| SLP 99Z - 230 V AC/50 Hz | |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 18 l/min (inf. data) |
| Water inlet: | male thread G 1/2“ |
| Water outlet: | inlet fitting with a rubber sealing |
Downloads
- Katalogblad (392.05 kB)
- Bygningsforberedelse (340.5 kB)
Tilbehør
