SLP 99 Dynasty 10SZ92001

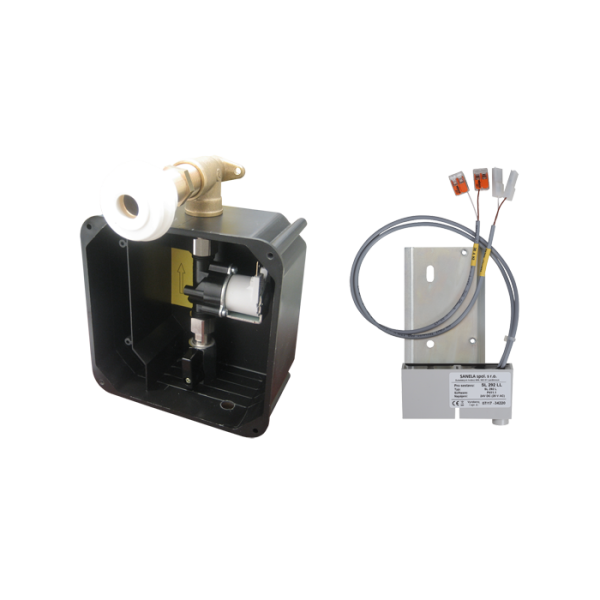

Radar flushing unit for urinal Dynasty 10SZ92001
Egenskaber

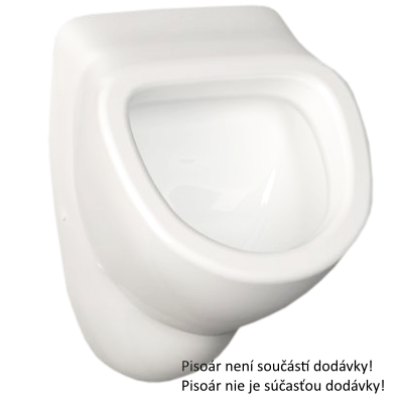

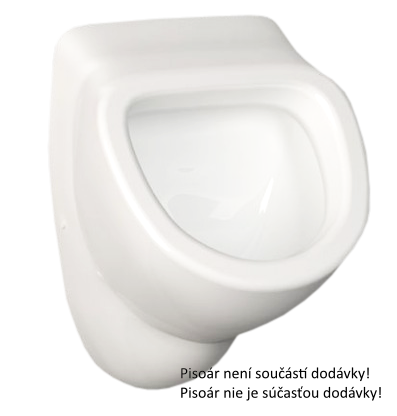

- DESIGNED FOR URINAL DYNASTY (Isvea) 10SZ92001
- includes Bluetooth control (Sanela Control app available for download)
- THE URINAL MUST BE SENT FOR ASSEMBLY (THE RADAR SENSOR IS GLUED ON THE BACKSIDE OF THE URINAL) (SLP 99RB)
- THE URINAL DOES NOT HAVE TO BE SENT FOR ASSEMBLY (THE RADAR SENSOR IS SUPPLIED SEPARATELY) (SLP 99R, SLP 99RZ)
- SLP 99R - 24 V DC, the product includes a installation box with outlet fitting, it must be embedded in the wall in the space behind the urinal
- SLP 99RZ - 230 V AC, including power supply unit
- SLP 99RB - 6 V, including housing with 4 pc AA batteries
- easy installation by the help of paper drill template
- economy flushing by 1 liter of water
- whole flushing unit is placed behind the urinal
- system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
- adjustable flushing time 0,5 - 15,5 s
- parameter setting and communication with the electronics via the Sanela Control app (Bluetooth) or the SLD 04 remote control (acoustic indication of setting) without dismantling the urinal
- automatic flushing after each 6 hours non-use
- possibility to regulate a water flow by the ball valve
- radar flushing unit recharges a water to the siphon after each flushing
Jeg er interesseret i mere information:
Leveringsspecifikation
SLP 99R - Supply No. 01994 - radar flushing unit including Bluetooth module on the mounting rail, electromagnetic valve, mounting box with brass screw coupling, inlet fitting with a rubber sealing, mounting set, paper drill template
SLP 99RZ - Supply No. 21994 - radar flushing unit including Bluetooth module on the mounting rail,electromagnetic valve, mounting box with brass screw coupling, inlet fitting with a rubber sealing, mounting set, paper drill template, power supply
SLP 99RB - Supply No. 11997 - radar flushing unit glued, including Bluetooth module, electromagnetic valve, mounting box with brass screw coupling, inlet fitting with a rubber sealing, mounting set, paper drill template
Tekniske oplysninger
| Operating voltage: | SLP 99R - 24 V DC |
| SLP 99RZ - 230 V AC | |
| SLP 99RB - 6 V | |
| Power input: | operating by 24 V DC - 8 W |
| operating by 6 V - 3 W | |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 18 l/min (inf. data) |
| Water inlet: | male thread G 3/4“ |
| Water outlet: | inlet fitting with a rubber sealing |
Downloads
- Katalogblad (399.39 kB)
