SLP 99 VAL 840281

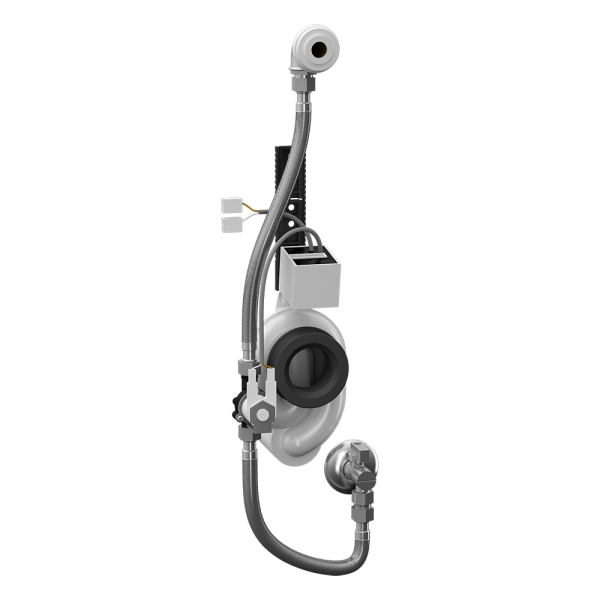

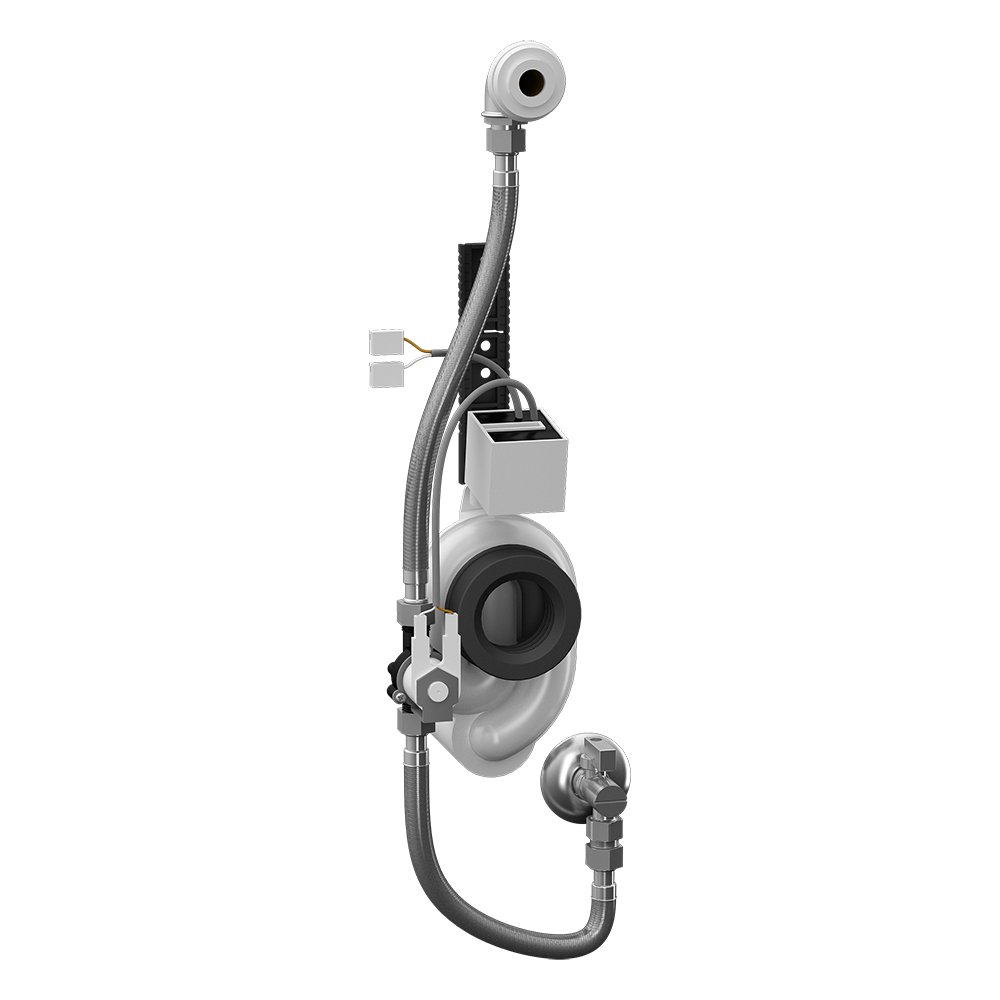

Radar flushing unit for urinal VAL 840281

Egenskaber

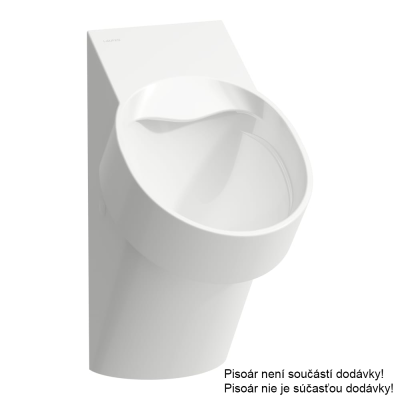

DESIGNED FOR URINAL VAL (Laufen) 840281, 840285
includes Bluetooth control (Sanela Control app available for download)
THE URINAL DOES NOT HAVE TO BE SENT FOR ASSEMBLY (THE RADAR SENSOR IS SUPPLIED SEPARATELY)
SLP 99S - 24 V DC, pre-wall mounting (water supply with flexi hoses)
SLP 99B - 6 V, including housing with 4 pc AA batteries
easy installation by the help of paper drill template
economy flushing by 1 liter of water
whole flushing unit is placed behind the urinal
system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
adjustable flushing time 0,5 - 15,5 s
parameter setting and communication with the electronics via the Sanela Control app (Bluetooth) or the SLD 04 remote control (acoustic indication of setting) without dismantling the urinal
automatic flushing after each 6 hours non-use
possibility to regulate a water flow by the angle valve
radar flushing unit recharges a water to the siphon after each flushing

Jeg er interesseret i mere information:

Kontakt os

Leveringsspecifikation

SLP 99S - Supply No. 21992 - radar flushing unit including Bluetooth module on the mounting rail, electromagnetic valve, connecting hoses, angle valve, inlet fitting with a rubber sealing, siphon, paper drill template

SLP 99B - Supply No. 21996 - radar flushing unit including Bluetooth module on the mounting rail, electromagnetic valve, connecting hoses, angle valve, inlet fitting with a rubber sealing, siphon, paper drill template, 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh with battery case

Tekniske oplysninger

Operating voltage:	SLP 99S - 24 V DC
	SLP 99B - 6 V
Power input:	operating by 24 V DC - 8 W
	operating by 6 V - 3 W
Recommended flow pressure:	0,1 - 0,6 MPa
Rate of flow:	18 l/min (inf. data)
Water inlet:	male thread G 1/2“
Water outlet:	inlet fitting with a rubber sealing
