SLP 99RB
Urinal radar flushing unit made to order, 6V
Vi beklager, men dette produkt er ikke længere i vores sortiment. Prøv venligst at vælge et andet fra vores sortiment
Egenskaber
- system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid (urine) is flowing through)
- adjustable flushing time from 0,5 to 15,5 sec.
- adjustable minimum use time (min. time of urinal direct using) from 6 to 15 sec.
- parameters adjustment by SLD 04 remote control (without the necessity to dismantle the urinal from the wall)
- automatic flushing after each 6 hours non-use
- possibility to regulate a water flow by the angle valve
- radar flushing unit recharges a water to the siphon after each flushing
- TYPE OF URINAL MUST BE MENTIONED IN THE ORDER!
- Ordrenummer: 11997
Jeg er interesseret i mere information:
Leveringsspecifikation

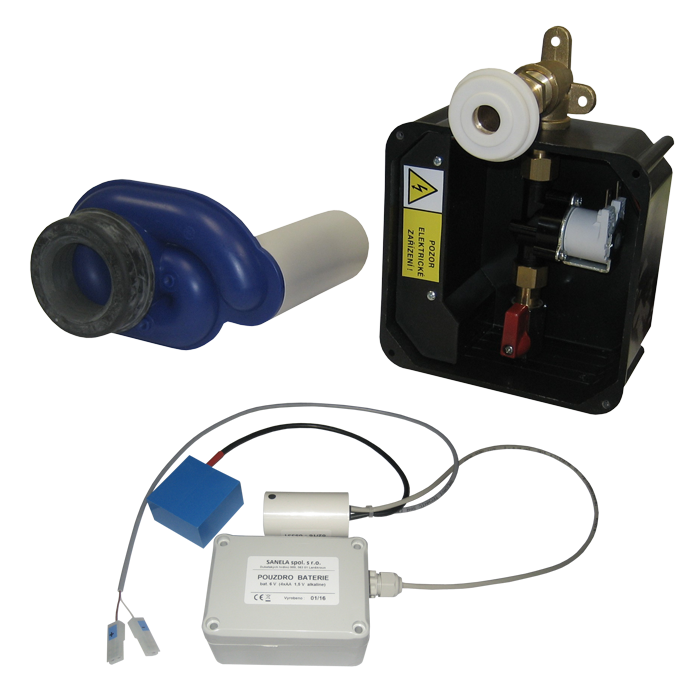

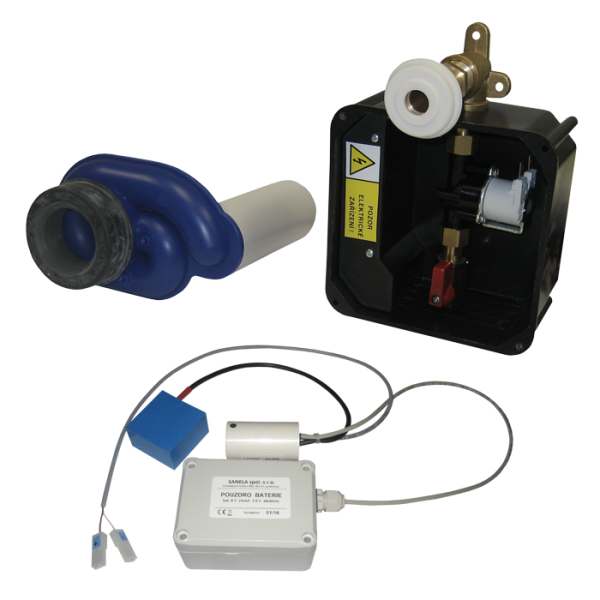

SLP 99RB - supply No. 11997 - radar flushing unit, electromagnetic valve, innlet fitting, set of 4 pcs. of alcaline batteries
Tekniske oplysninger
Dimension of mounting box: 140 x 140 x 75 mm
Operating voltage: 6V
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 3/4“
Water outlet: inlet fitting with a rubber seal
Operating voltage: 6V
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 3/4“
Water outlet: inlet fitting with a rubber seal
Tilbehør
Visningen af produkterne på hjemmesiden er kun til orientering. Producenten forbeholder sig retten til at foretage tekniske ændringer eller ændringer af parametre. Producenten gør alt for at holde de offentliggjorte oplysninger så opdaterede som muligt, men garanterer ikke, at alle data er nøjagtige og aktuelle på tidspunktet.
