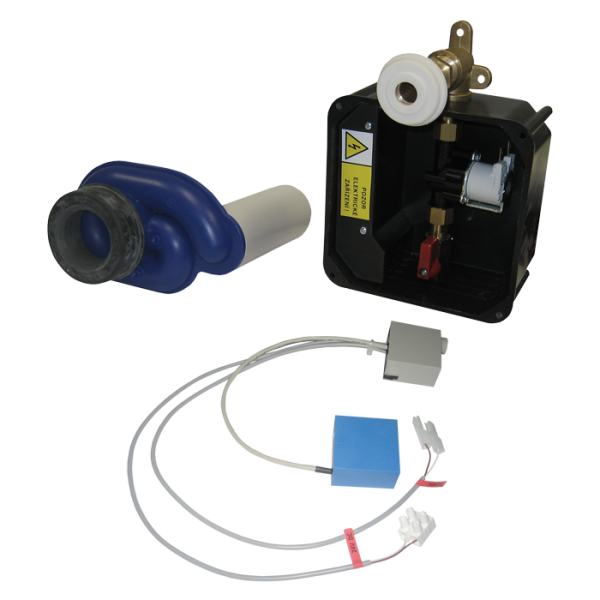

SLP 99RZ
Urinal radar flushing unit made to order, 230V AC
Vi beklager, men dette produkt er ikke længere i vores sortiment. Prøv venligst at vælge et andet fra vores sortiment
Egenskaber
- system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid (urine) is flowing through)
- adjustable flushing time from 0,5 to 15,5 sec.
- adjustable minimum use time (min. time of urinal direct using) from 6 to 15 sec.
- parameters adjustment by SLD 04 remote control (without the necessity to dismantle the urinal from the wall)
- automatic flushing after each 6 hours non-use
- possibility to regulate a water flow by the angle valve
- radar flushing unit recharges a water to the siphon after each flushing
- TYPE OF URINAL MUST BE MENTIONED IN THE ORDER!
- Ordrenummer: 01995
Jeg er interesseret i mere information:
Leveringsspecifikation

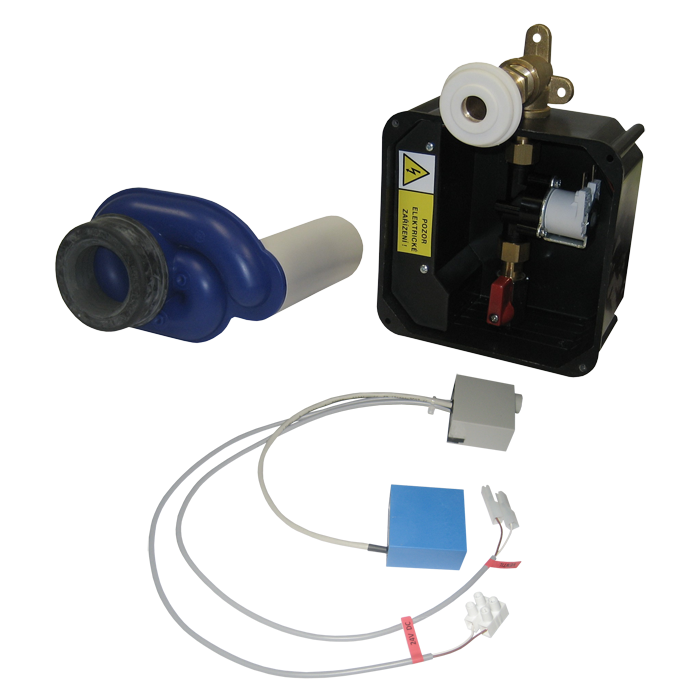

SLP 99RZ - supply No. 01995 - radar flushing unit, electromagnetic valve, innlet fitting, integrated power supply
Tekniske oplysninger
Dimension of mounting box: 140 x 140 x 75 mm
Operating voltage: 230V AC/50Hz
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 3/4“
Water outlet: inlet fitting with a rubber seal
Operating voltage: 230V AC/50Hz
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 3/4“
Water outlet: inlet fitting with a rubber seal
Tilbehør
