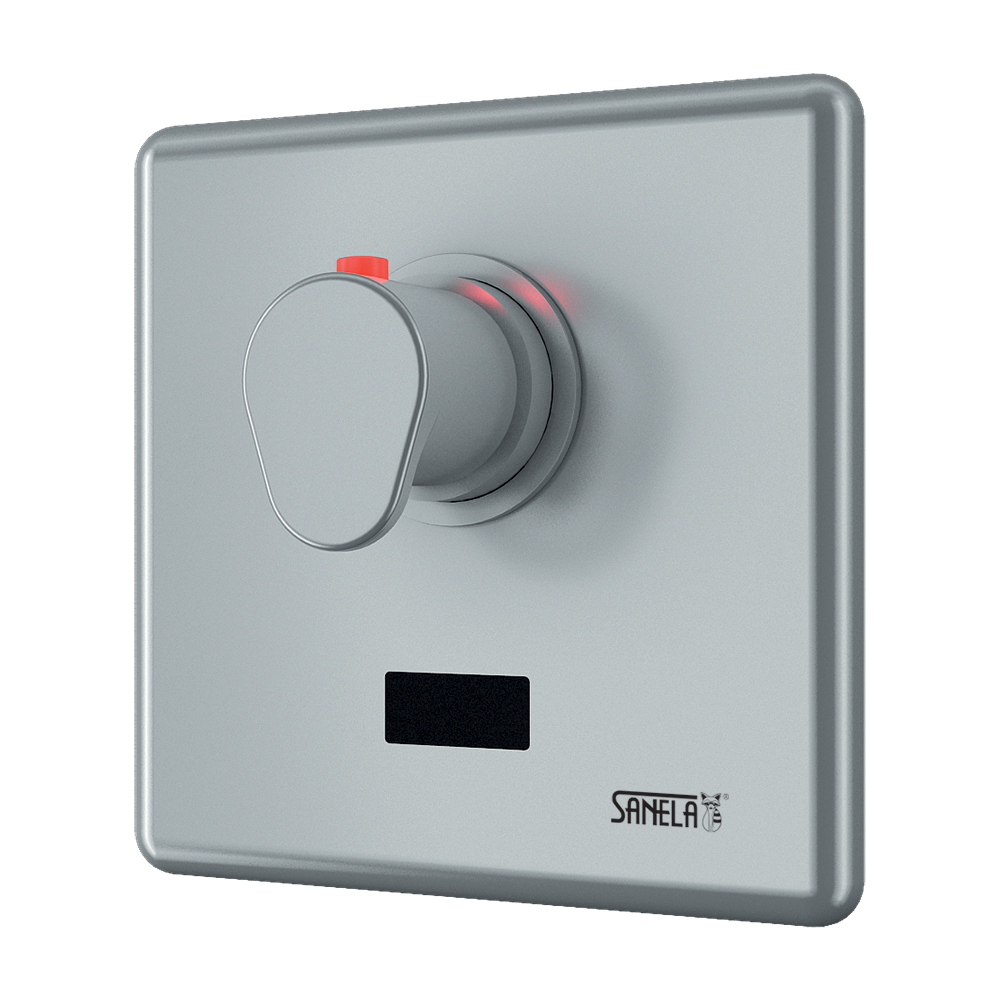

SLS 02T
Shower control with thermostatic mixer, 24 V DC
Vi beklager, men dette produkt er ikke længere i vores sortiment. Prøv venligst at vælge et andet fra vores sortiment
Egenskaber
- hygienic flush
- SLS 02T are destined for cold and hot water, temperature is regulated by thermostatic mixer
- safety fuse against scalding
- water is flowing as long as an user is in the active range
- water stops flowing after the user leaves the active range sensor after adjustable time delay (can be set in range 0,25 - 7,75 s), standard 2 s
- function of automatic water stop after 5 minut of continuous flow
- START/STOP program
- parameter adjustment using by the remote control SLD 03
- Ordrenummer: 02023
Jeg er interesseret i mere information:
Leveringsspecifikation
SLS 02T - Supply No. 02023 - stainless steel cover with electronics, stainelss steel mounting box with brass screw coupling, electromagnetic valve, ball valve and thermostatic mixer
Tekniske oplysninger
| Materiale: | rustfrit stål |
| Temperaturregulering: | med termostat |
| Strømforsyning: | 24V DC |
| Kontrol: | infrarød |
| Stainless steel cover dimension: | 170 x 170 x 10 mm |
| Mounting box dimension: | 150 x 160 x 65 mm |
| Operating voltage: | 24 V DC |
| Active range: | standard 0,27 - 0,35 m, START/STOP program 0,05 - 0,15 m |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 12 l/min. (inf. data) |
| Water inlet: | male thread G 3/4“ |
| Water outlet: | male thread G 3/4“ |
Downloads
- Monteringsvejledning (4.01 MB)
- Katalogblad (403.73 kB)
- 2D-tegning (352.35 kB)
Tilbehør
Visningen af produkterne på hjemmesiden er kun til orientering. Producenten forbeholder sig retten til at foretage tekniske ændringer eller ændringer af parametre. Producenten gør alt for at holde de offentliggjorte oplysninger så opdaterede som muligt, men garanterer ikke, at alle data er nøjagtige og aktuelle på tidspunktet.
