SLU 03DB

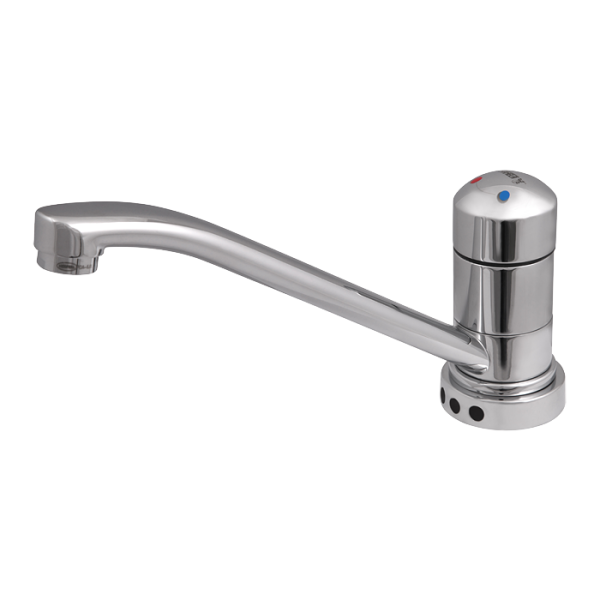

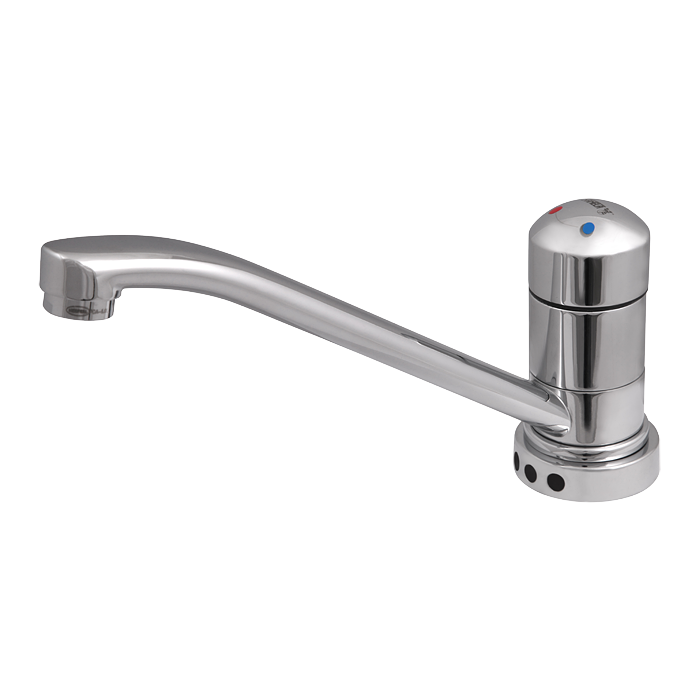

Washbasin and sink mixer with elongated spout, 9 V
Vi beklager, men dette produkt er ikke længere i vores sortiment. Prøv venligst at vælge et andet fra vores sortiment
Egenskaber
- hygienic flush
- fixed faucet
- is destined for cold and hot water, temperature is regulated by an integrated mixer
- water is flowing as long as hands are in the active range
- water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 – 7,75 s)
- function of automatic water stop after 5 minut of continuous flow
- monitoring of battery capacity
- START/STOP program
- parameter adjustment using by the remote control SLD 03
- Ordrenummer: 13032
Jeg er interesseret i mere information:
Leveringsspecifikation
SLU 03DB - Supply No. 13032 - elongated faucet with mixer cartrige, sensing head with electronics, holder of electronics, electromagnetic valve (2 pcs.), connecting hoses, angle valve with filter and check valve (2 pcs.), lithium battery SLA 09 with battery case
Tekniske oplysninger
| Materiale: | krom |
| Temperaturregulering: | med blandingsbatteri |
| Strømforsyning: | batteridrevet |
| Kontrol: | infrarød |
| Operating voltage: | 9 V |
| Battery life: | lithium 9V, type U9VL (aprox. 2 years (100 uses per day) |
| Active range: | standard 0,17 - 0,25 m, START/STOP program 0,05 - 0,15 m |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 12 l/min. (inf. data) |
| Water inlet: | male thread G 1/2“ |
Downloads
- Monteringsvejledning (2.32 MB)
- Katalogblad (144 kB)
