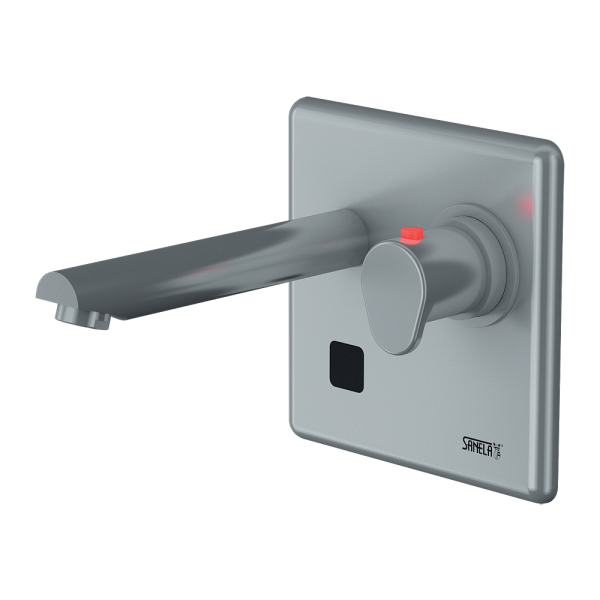

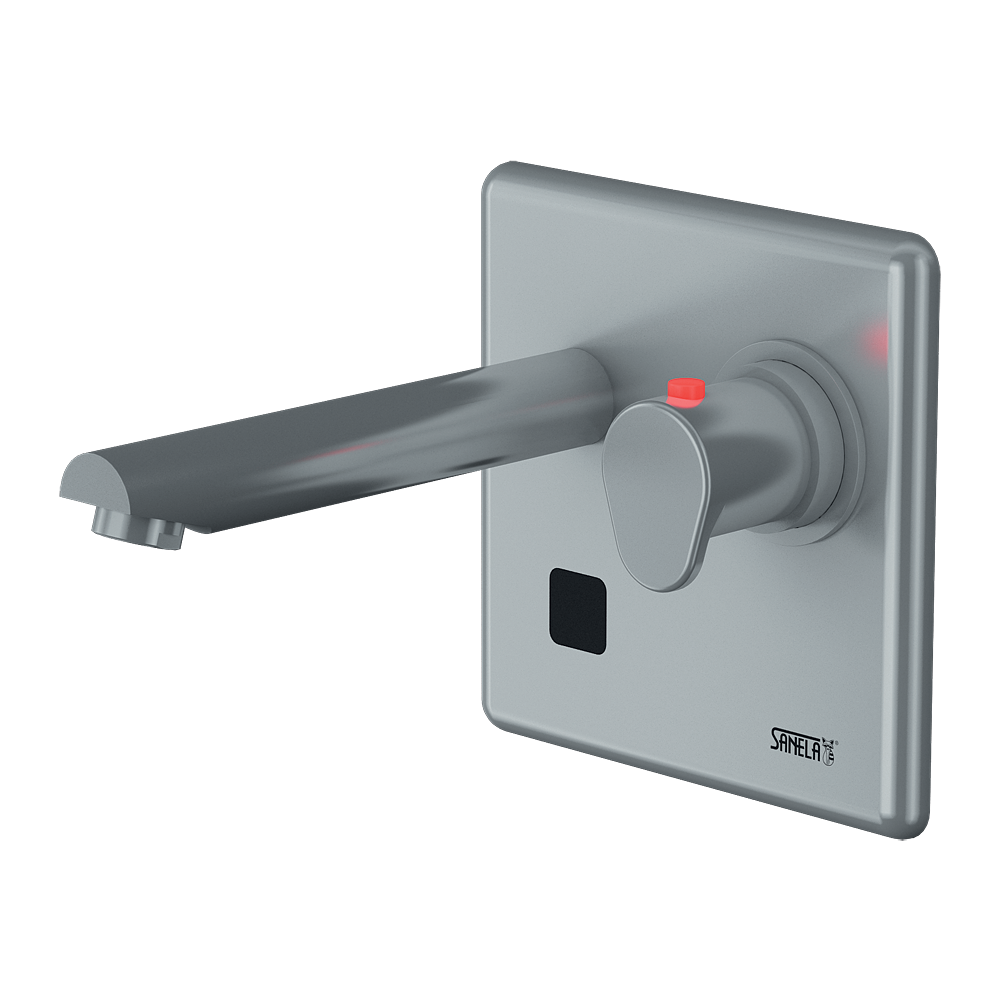

SLU 04HT17
Wall-mounted thermostatic mixer, spout of 170 mm, 24 V DC
Vi beklager, men dette produkt er ikke længere i vores sortiment. Prøv venligst at vælge et andet fra vores sortiment
Egenskaber
- economical aerator, rate of flow 6 l/min
- hygienic flush
- suitable for medical facilities
- is destined for cold and hot water, temperature is regulated by thermostatic mixer
- safety fuse against scalding
- stop flowing of hot water till 1 s in case of cold water failure
- pressure of hot and cold water must be same
- water is flowing as long as hands are in the active range
- water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 – 7,75 s)
- function of automatic water stop after 5 minut of continuous flow
- START/STOP program
- parameter adjustment using by the remote control SLD 03
- water flow can be regulated by ball valve
- Ordrenummer: 43046
Jeg er interesseret i mere information:
Leveringsspecifikation
SLU 04HT17 - Supply No. 43046 - spout, stainless steel cover with electronics, stainless steel mounting box with thermostat, electromagnetic valve, ball valve and screw coupling
Tekniske oplysninger
| Materiale: | rustfrit stål |
| Temperaturregulering: | med termostat |
| Strømforsyning: | 24V DC |
| Kontrol: | infrarød |
| Stainless steel cover dimension: | 170 x 170 x 10 mm |
| Mounting box dimension: | 155 x 155 x 82 mm |
| Length of the spout: | 170 mm |
| Operating voltage: | 24 V DC |
| Active range: | standard 0,27 - 0,35 m, START/STOP program 0,05 - 0,15 m |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 6 l/min. (inf. data) |
| Water inlet: | male thread G 3/4“ |
Downloads
- Monteringsvejledning (3.62 MB)
- Katalogblad (290.26 kB)
- 2D-tegning (138.01 kB)
