SLU 04HT25B

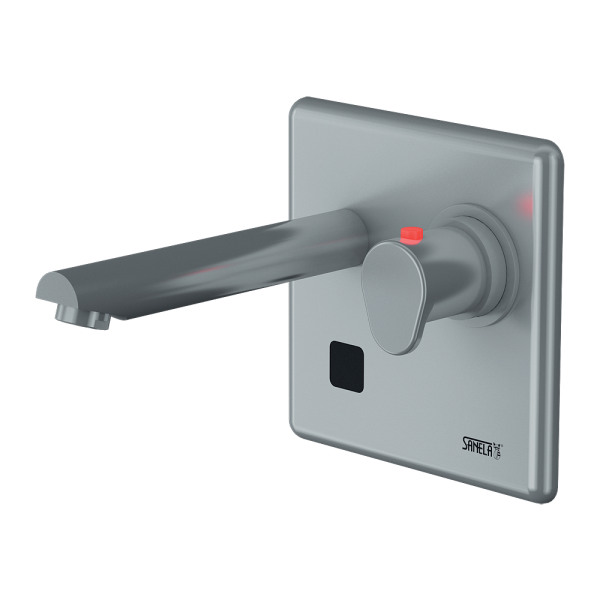

Wall-mounted thermostatic mixer, spout of 250 mm, 6 V
Vi beklager, men dette produkt er ikke længere i vores sortiment. Prøv venligst at vælge et andet fra vores sortiment
Egenskaber
- economical aerator, rate of flow 6 l/min
- hygienic flush
- suitable for medical facilities
- is destined for cold and hot water, temperature is regulated by thermostatic mixer
- safety fuse against scalding
- stop flowing of hot water till 1 s in case of cold water failure
- pressure of hot and cold water must be same
- water is flowing as long as hands are in the active range
- water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 – 7,75 s)
- function of automatic water stop after 5 minut of continuous flow
- monitoring of battery capacity
- START/STOP program
- parameter adjustment using by the remote control SLD 03
- water flow can be regulated by ball valve
- Ordrenummer: 65044
Jeg er interesseret i mere information:
Leveringsspecifikation
SLU 04HT25B - Supply No. 65044 - spout, stainless steel cover with electronics, stainless steel mounting box with thermostat, electromagnetic valve, ball valve and screw coupling, 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh
Tekniske oplysninger
| Materiale: | rustfrit stål |
| Temperaturregulering: | med termostat |
| Strømforsyning: | batteridrevet |
| Kontrol: | infrarød |
| Stainless steel cover dimension: | 170 x 170 x 10 mm |
| Mounting box dimension: | 155 x 155 x 82 mm |
| Length of the spout: | 250 mm |
| Operating voltage: | 6 V |
| Battery life: | 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh approx. 2 years (100 uses per day) |
| Active range: | standard 0,27 - 0,35 m, START/STOP program 0,05 - 0,15 m |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 6 l/min. (inf. data) |
| Water inlet: | male thread G 3/4“ |
Downloads
- Monteringsvejledning (3.1 MB)
- Katalogblad (290.26 kB)
- 2D-tegning (139.61 kB)
Tilbehør
Relaterede produkter
Visningen af produkterne på hjemmesiden er kun til orientering. Producenten forbeholder sig retten til at foretage tekniske ændringer eller ændringer af parametre. Producenten gør alt for at holde de offentliggjorte oplysninger så opdaterede som muligt, men garanterer ikke, at alle data er nøjagtige og aktuelle på tidspunktet.
