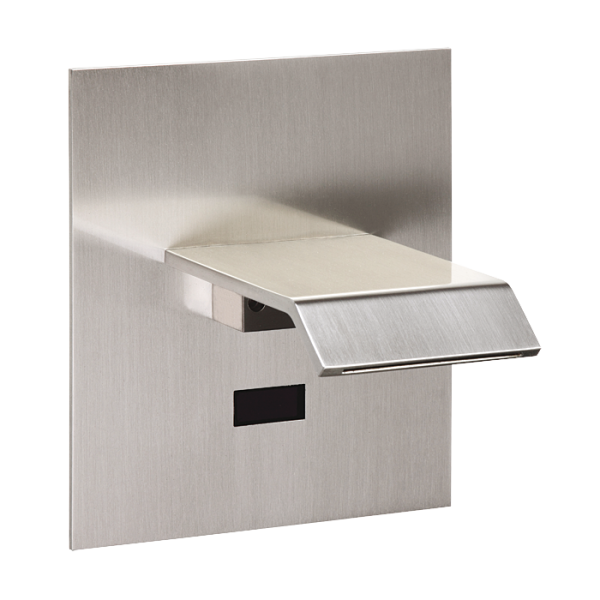

SLU 14
Wall-mounted tap for cold and hot water, 24V DC
Vi beklager, men dette produkt er ikke længere i vores sortiment. Prøv venligst at vælge et andet fra vores sortiment
Egenskaber
- SLU 14 - polished finish
- function of automatic water stop after 5 minutes of continuous flow
- water is flowing as long as hands are in the active range (max. range to 0,3 m)
- water stops flowing after removal of hands from the active range of sensor after adjustable time delay
- adjustable time delay from 0,25 to 7,75 sec.
- possibility of changing of time delay, active range and switching off by SLD 03
- washbasin tap is destined for cold or premixed water, water temperature is regulated by ball valve
- START/STOP program
- Ordrenummer: 03140
Jeg er interesseret i mere information:
Leveringsspecifikation
SLU 14 - supply No. 03140 - stainless steel cover with an integrated electronics; spout 125 mm; plastic mounting box with brass screw-coupling, electromagnetic valve (1 pc.) and ball valve
Tekniske oplysninger
| Stainless steel cover dimension: | 160 x 180 x 3 mm |
| Mounting box dimension: | 140 x 140 x 75 mm |
| Operating voltage: | 24V DC external |
| Active range: | standard 0 - 0,3 m, START/STOP program 0,05-0,1 m |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 12 l/min. (inf. data) |
| Water inlet: | male thread G 3/4“ |
Downloads
- Monteringsvejledning (1.19 MB)
- Katalogblad (202.64 kB)
