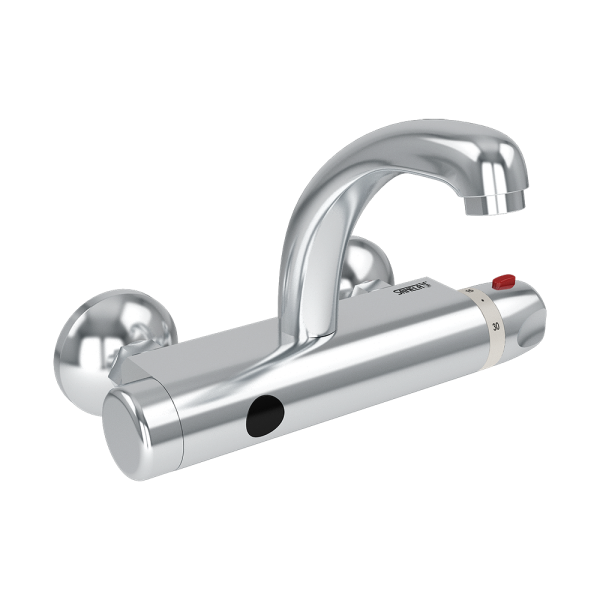

SLU 25BK
Wall-mounted thermostatic mixer, water supply span 100 mm, 9V
Vi beklager, men dette produkt er ikke længere i vores sortiment. Prøv venligst at vælge et andet fra vores sortiment
Egenskaber
- economical aerator, rate of flow 6 l/min
- suitable for medical facilities
- function of automatic water stop after 5 minutes of continuous flow
- mixers are destined for cold and hot water, water temperature is regulated by automatic thermostatic mixer, pressure of hot and cold water must be the same
- water is flowing as long as hands are in the active range (max. range to 0,3 m)
- water stops flowing after removal of hands from the active range of sensor after adjustable time delay
- adjustable time delay from 0,25 to 7,75 sec.
- possibility of changing of time delay, active range and switching off by SLD 03
- safety fuse against scalding
- monitoring of battery capacity
- START/STOP program
- Ordrenummer: 13254
Jeg er interesseret i mere information:
Leveringsspecifikation
SLU 25BK - supply No. 13254 - chromium-plated faucet with an integrated electronics; built-in thermostatic mixer and electromagnetic valve (1 pc.); regulating tap connection (2 pcs.); chromium-plated cover (2 pcs.); swivel spout (chromium-plated); filter (2 pcs.), lithium battery SLA 09
Tekniske oplysninger
| Materiale: | krom |
| Temperaturregulering: | med termostat |
| Strømforsyning: | batteridrevet |
| Kontrol: | infrarød |
Operating voltage: 9V
Active range: standard 0,07 - 0,4 m, START/STOP program 0,05 - 0,15 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 1/2˝
Water outlet: swivel spout
Temperature regulation: by automatic thermostatic mixer
Downloads
- Monteringsvejledning (1.51 MB)
- 2D-tegning (125.06 kB)
- Katalogliste
